Compact 0.96-inch SSD1306 OLED display module with 128 × 64 pixels for microcontroller projects, sensor readings, status screens and small control panels. Choose your interface and display colour before ordering.

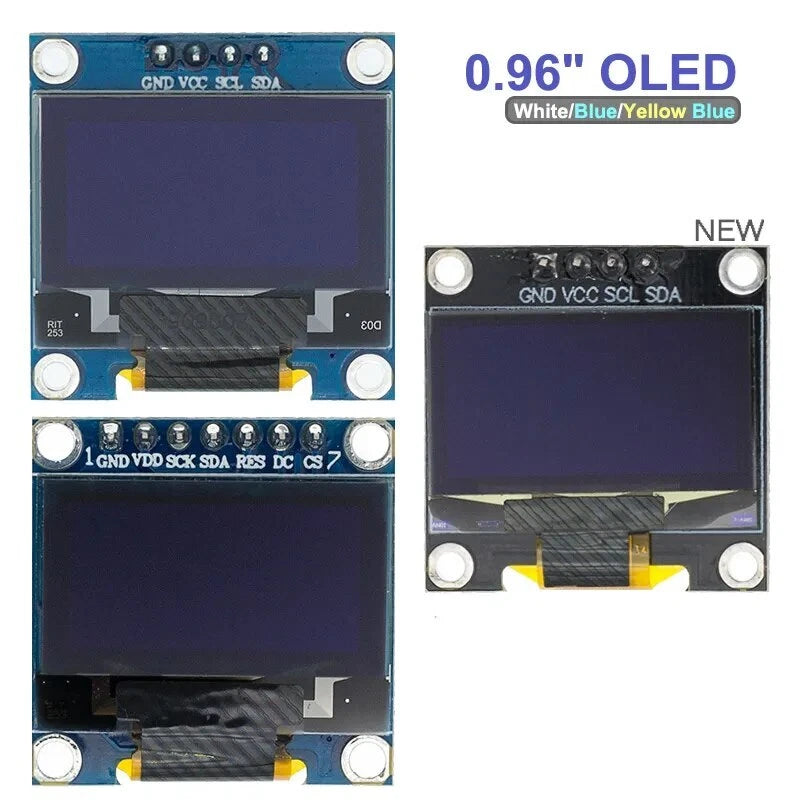

Choose the correct version
-
I2C (4 Pin): GND, VCC, SCL and SDA connections.
-
SPI (7 Pin): a separate 7-pin SPI version; select it only if your wiring and software support SPI.
-

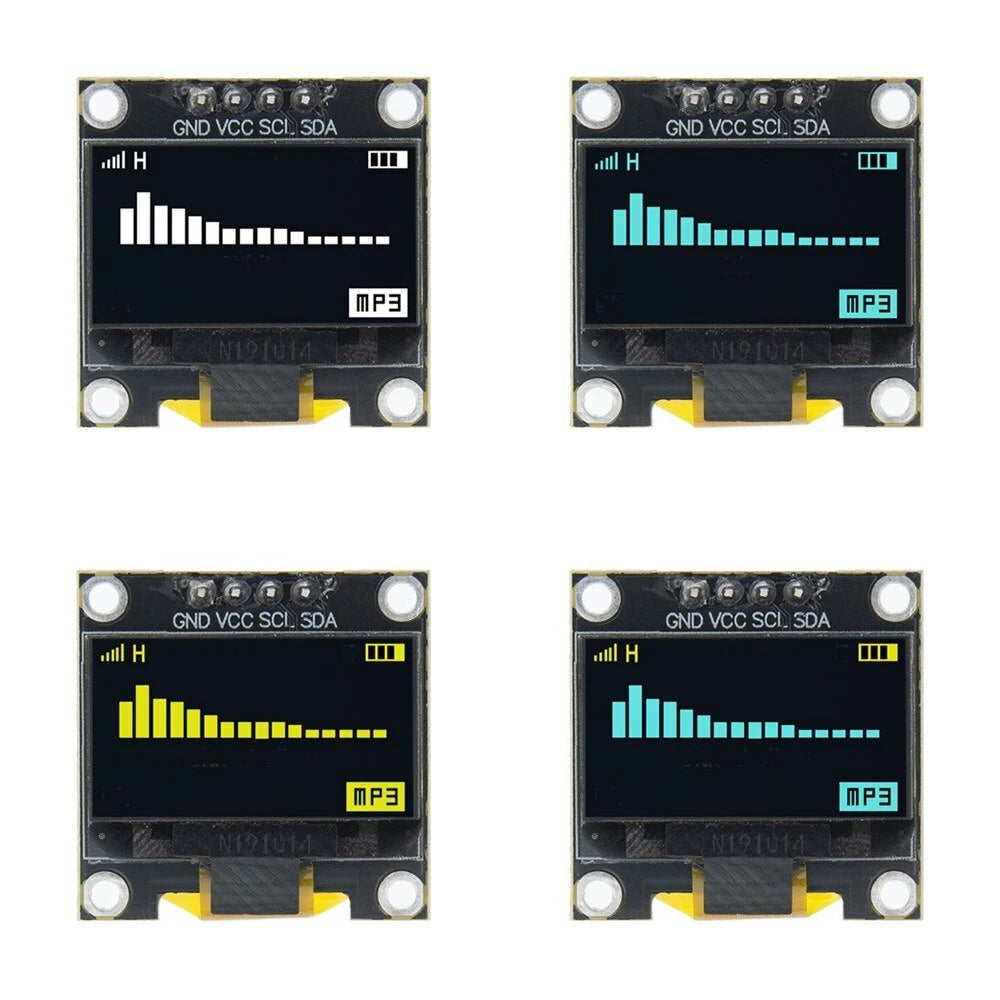

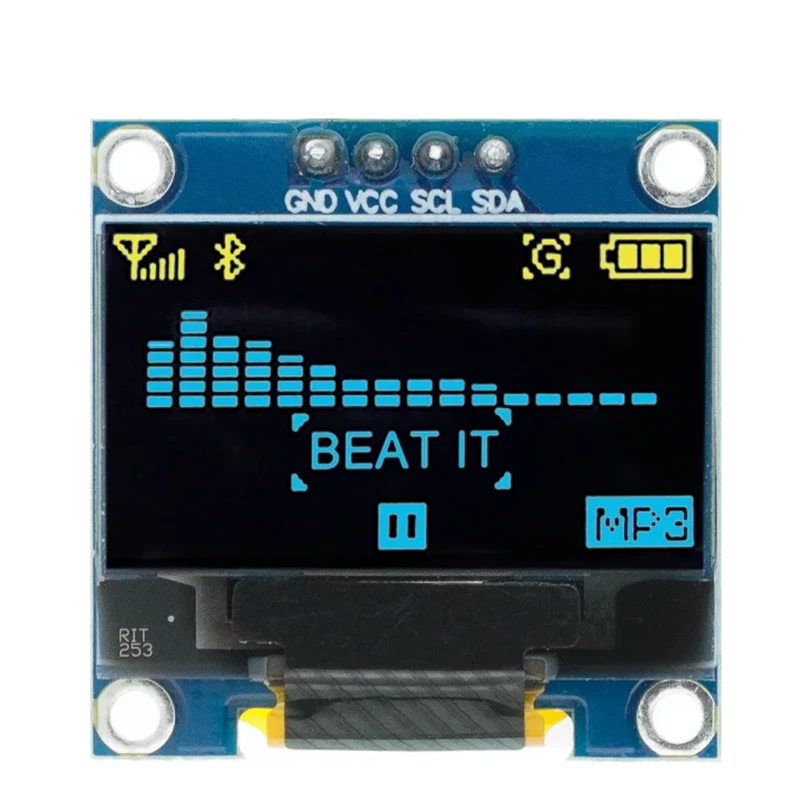

Display colours: White, Blue or Yellow & Blue. The yellow/blue version has fixed colour areas rather than a full-colour screen.
Specifications
- Screen size: 0.96 inch
- Resolution: 128 × 64 pixels
- Driver: SSD1306
- Listed module supply voltage: 3–5V DC
- Operating temperature: approximately −30°C to +70°C
- Listed panel dimensions: approximately 26.70 × 19.26 × 1.85mm
- Active display area: approximately 21.74 × 11.2mm
Suitable for Arduino, ESP8266, ESP32 and other compatible microcontrollers when used with the correct SSD1306 library, interface configuration and wiring.
What is included?
1 × OLED display module in the interface and colour you select. One item quantity means one display module. Microcontroller boards and connecting wires are not included.
Before connecting
Check the pin labels on the module before powering it. Match the interface to your code and use logic levels suitable for your microcontroller; a 3–5V supply rating does not guarantee every signal pin is 5V tolerant.
