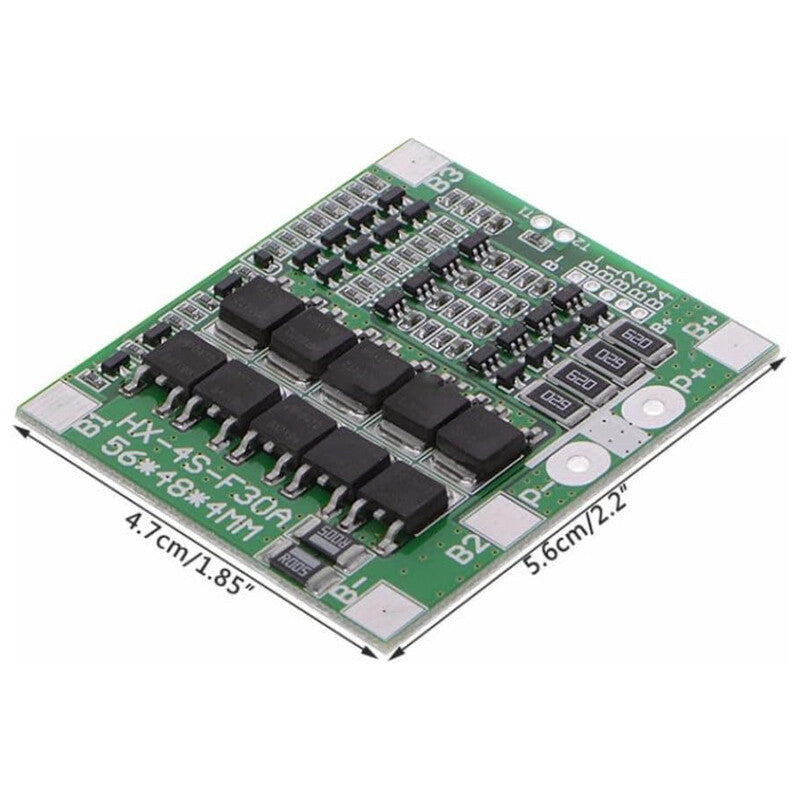

4-series 30A battery management and protection board for building or repairing compatible lithium battery packs. Two chemistry-specific versions are available—select the correct board for your cells.
Options
-

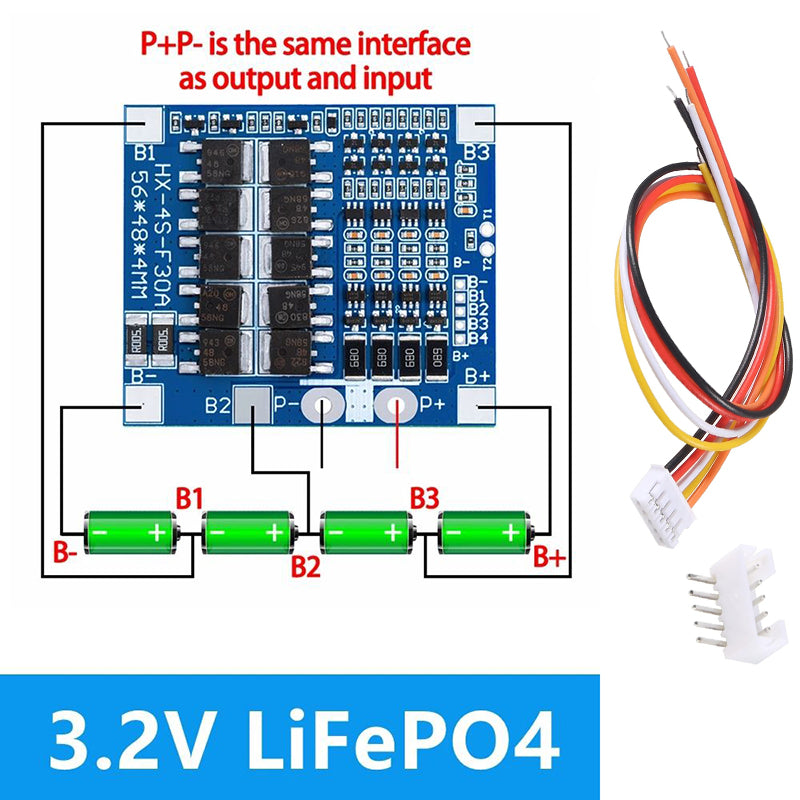

Blue 3.2V LiFePO4: for 4S lithium iron phosphate battery packs
-
Green 3.7V Lithium: for 4S lithium-ion battery packs
Seller-listed performance
- Continuous discharge current: up to 30A
- Instantaneous discharge current: 56A
- Charging current: up to 20A
- Cell balancing current: 58 ± 5mA
- Main-circuit resistance: ≤20mΩ
- Operating temperature: -20°C to +80°C
Protection functions

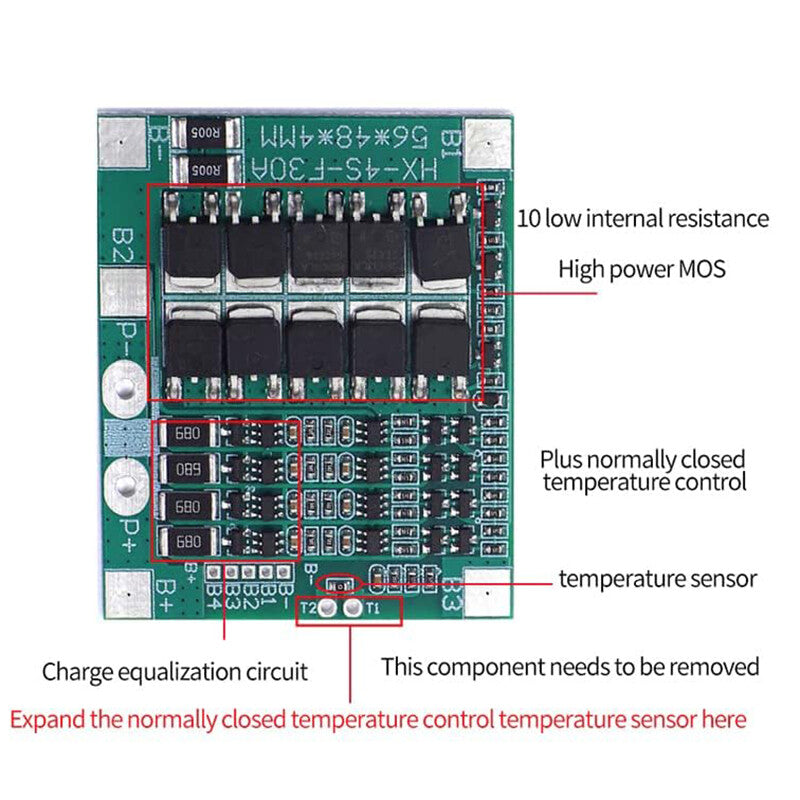

Overcharge, over-discharge, over-current and short-circuit protection, with cell balancing.
Important

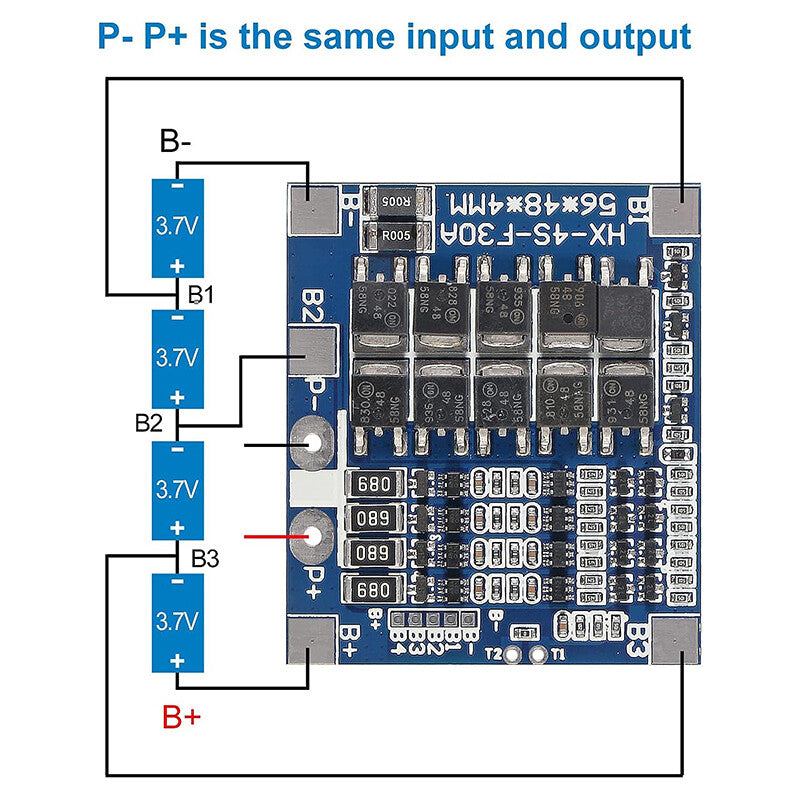

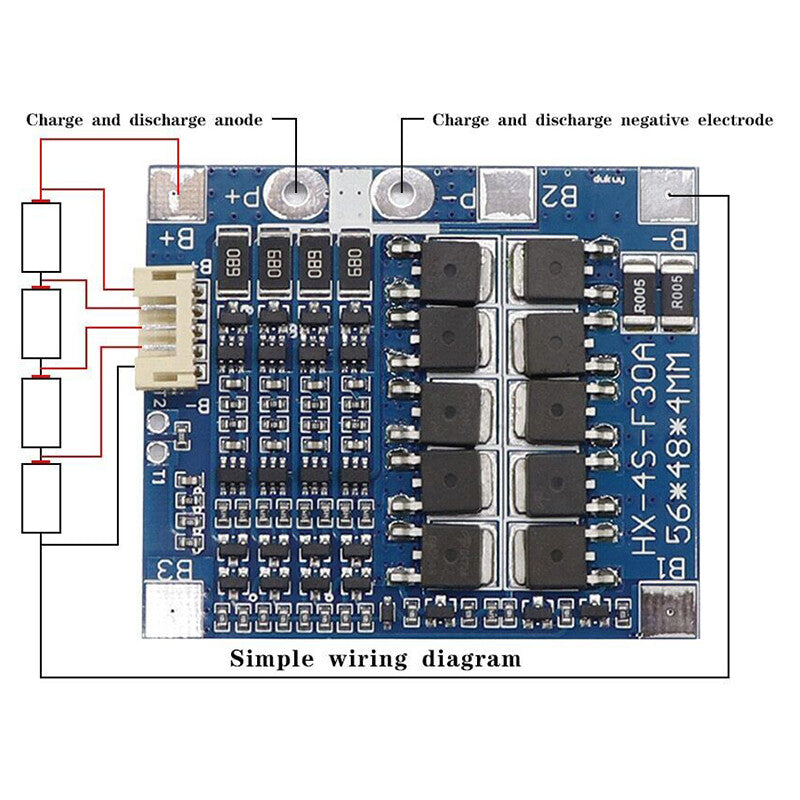

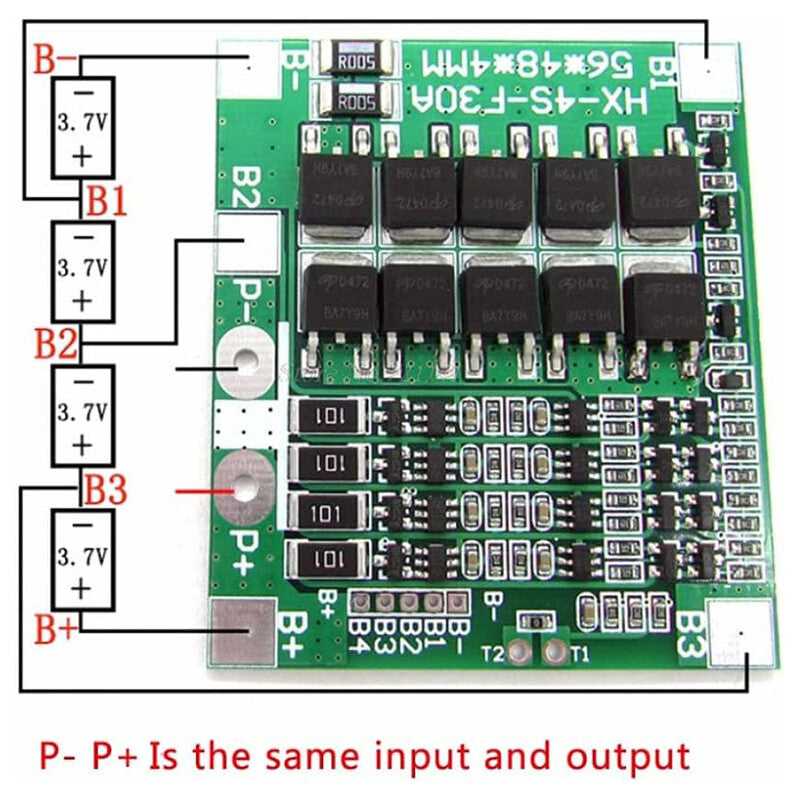

LiFePO4 and lithium-ion boards are not interchangeable. Confirm the cell chemistry, series count, voltage, wiring sequence and current requirements before installation. Installation requires suitable electrical knowledge; incorrect wiring can damage the board or battery pack.

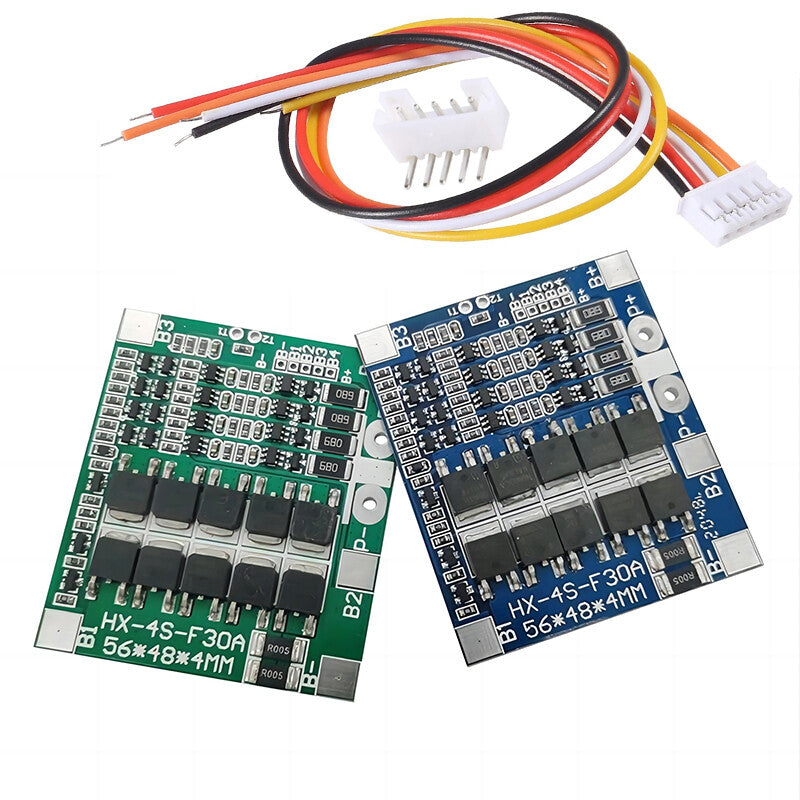

Package includes 1 × protection board with balance lead, according to the selected type.
