DC-DC Mini Adjustable Boost Converter Module
Compact step-up power module for lithium-battery and low-voltage electronics projects. The output can be configured to 5V, 8V, 9V or 12V by changing the A/B solder pads.
- Selectable output: 5V / 8V / 9V / 12V
- Input range: 2.5V to VOUT minus 0.5V
- Typical output from a 3.7V lithium battery: 5V 1A, 8V 0.7A, 9V 0.6A or 12V 0.5A
- Maximum input/output current: 1.5A
- LED output indicator; approximately 6mA consumption at the default 12V setting

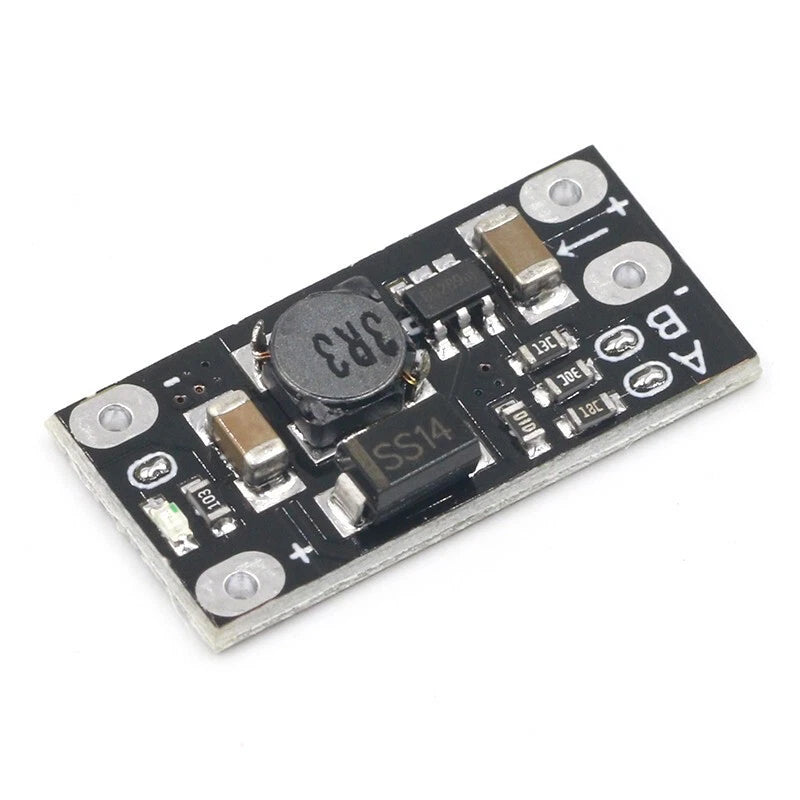

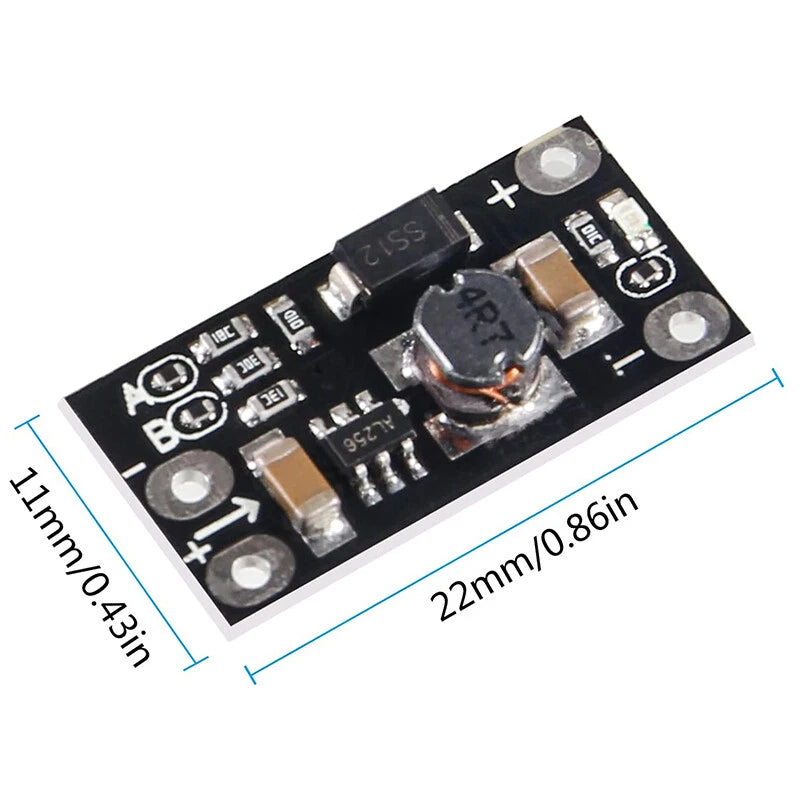

- Compact dimensions: 22 × 11 × 3.6mm

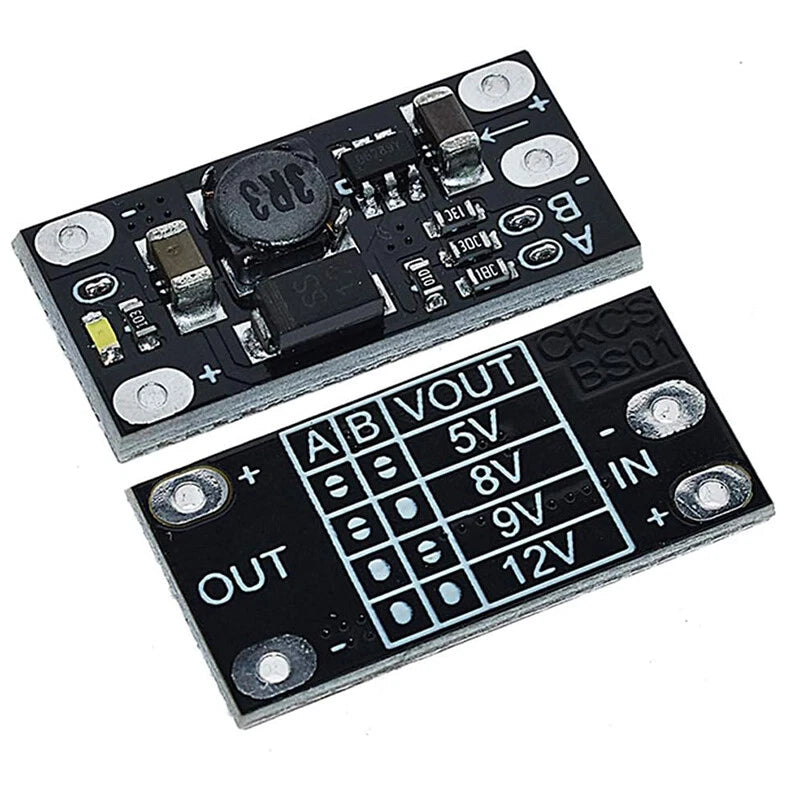

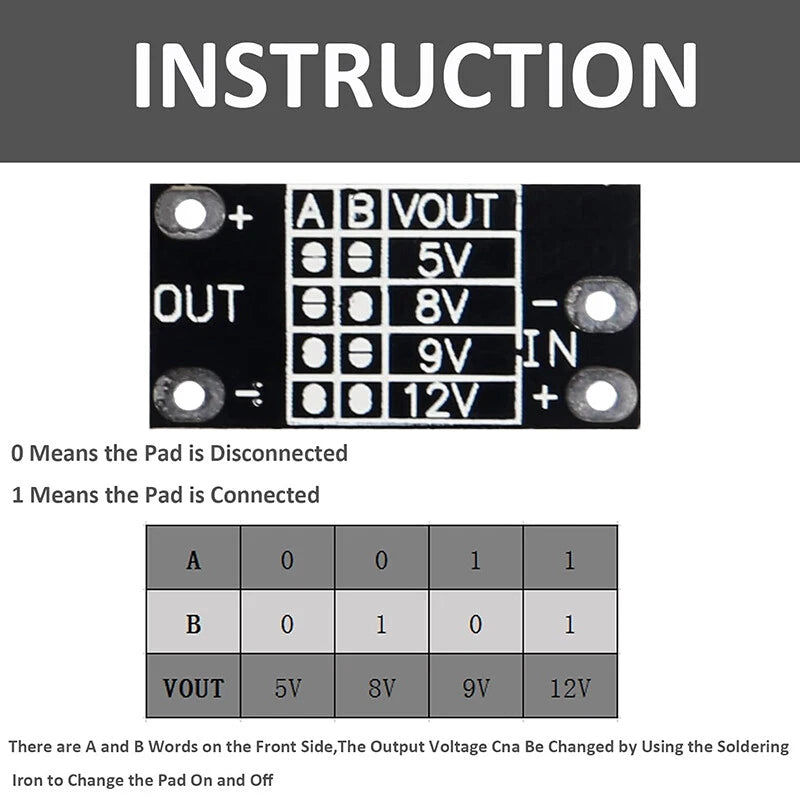

Output-voltage pad settings
| A |
B |
Output |
| Open |
Open |
5V |
| Open |
Bridged |
8V |
| Bridged |
Open |
9V |
| Bridged |
Bridged |
12V |

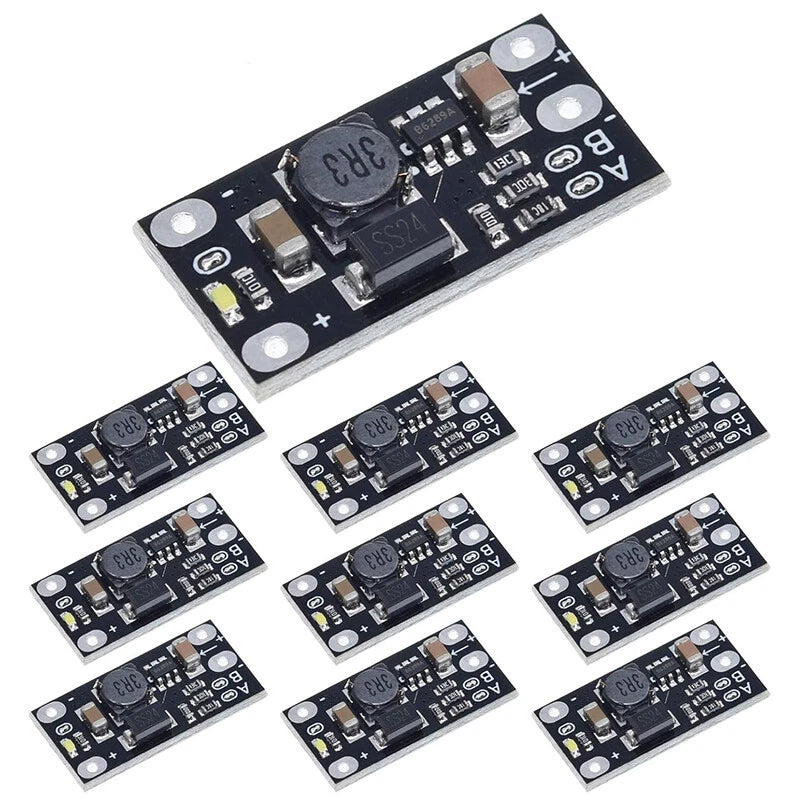

Package: Select 1, 2, 5 or 10 modules.
Delivery: Free UK economy registered delivery. 30-day returns and secure PayPal checkout.
Electronic component for competent users. Confirm polarity, solder-pad configuration and load requirements before use.
