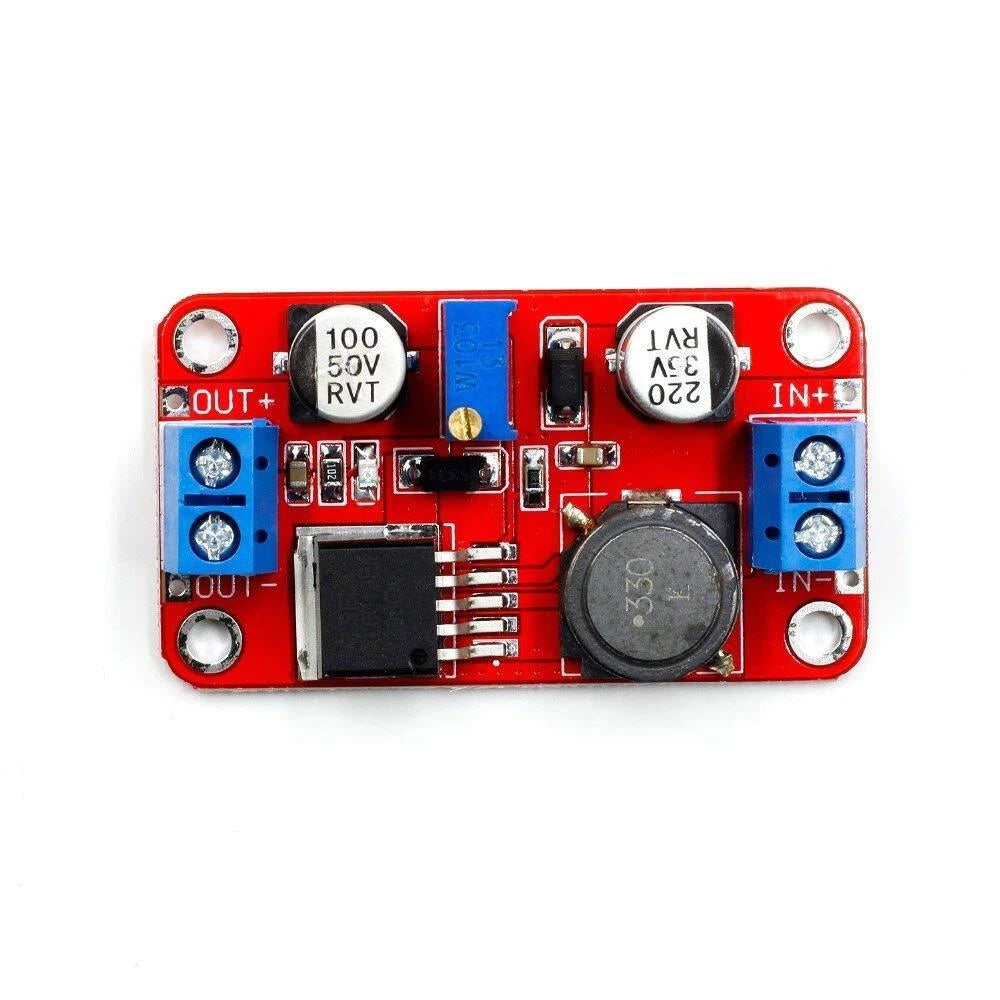

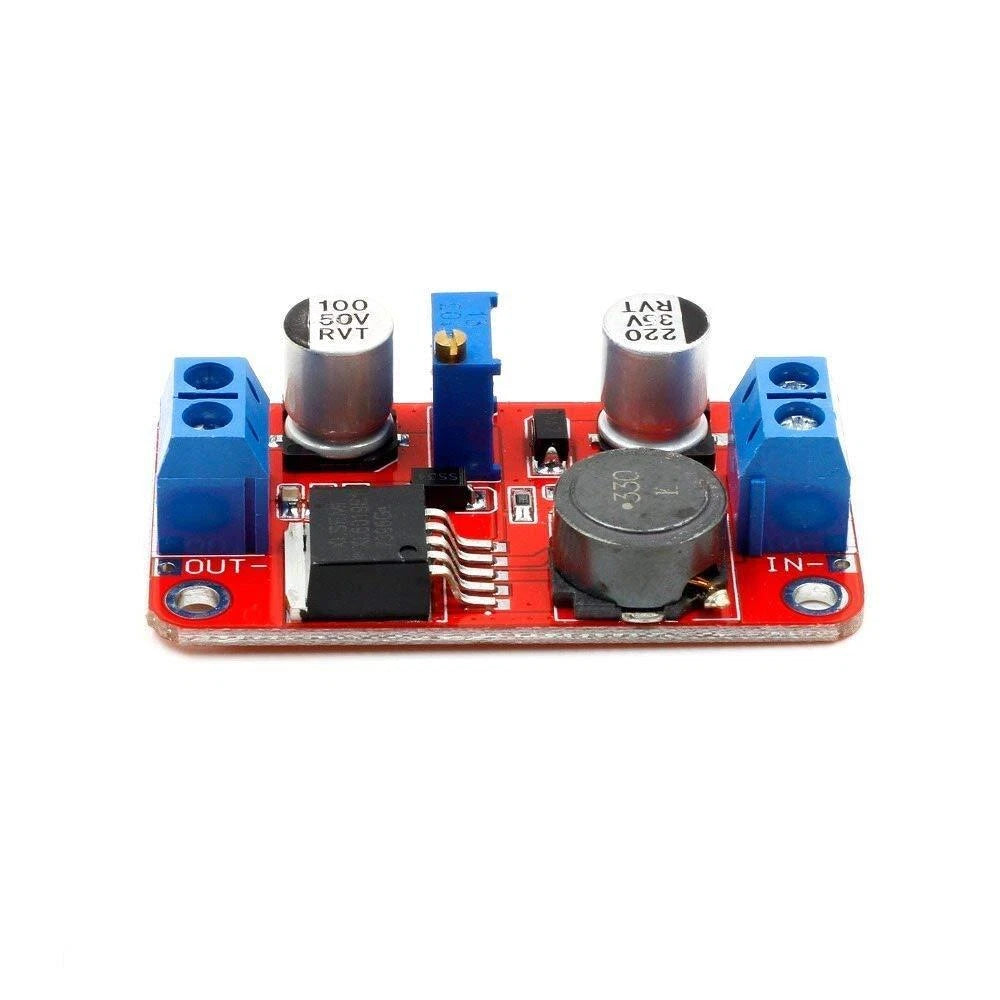

Pack contents: 1, 3 or 5 × XL6019 boost converter modules, according to the selected pack size. One unit added to your basket means one pack of that size. Power supply, cables and other accessories are not included.
An adjustable, non-isolated DC–DC step-up converter for electronics projects and voltage-boosting applications. Set the required output using the onboard adjustment trimmer. This is a boost-only module: it cannot reduce the input voltage.
Specifications
| Converter IC |
XL6019 |
| Converter type |
Non-isolated boost; non-synchronous rectification |
| Input voltage |
3–35V DC, as specified by the supplier |
| Adjustable output |
5–40V DC; the required output must be above the input voltage |
| Input current |
3A stated operating input current; 5A stated maximum input current |
| Efficiency |
Approximately 85% typical; up to 94% under favourable operating conditions |
| Switching frequency |
220kHz |
| Output ripple |
Supplier specification: <100mV, dependent on operating conditions |
| Load / voltage regulation |
Supplier specification: ±0.5% |
| Module dimensions |

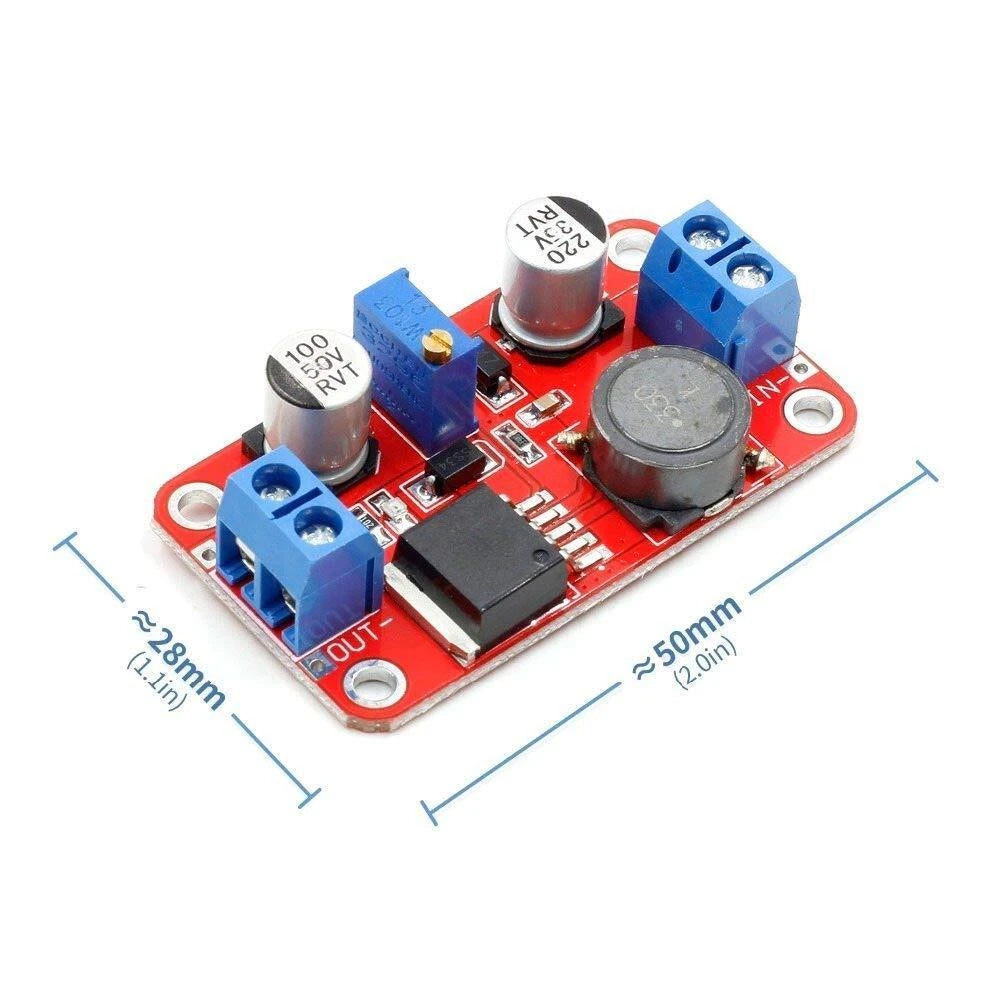

Approximately 50 × 28 × 12mm |
Choose the pack size
-

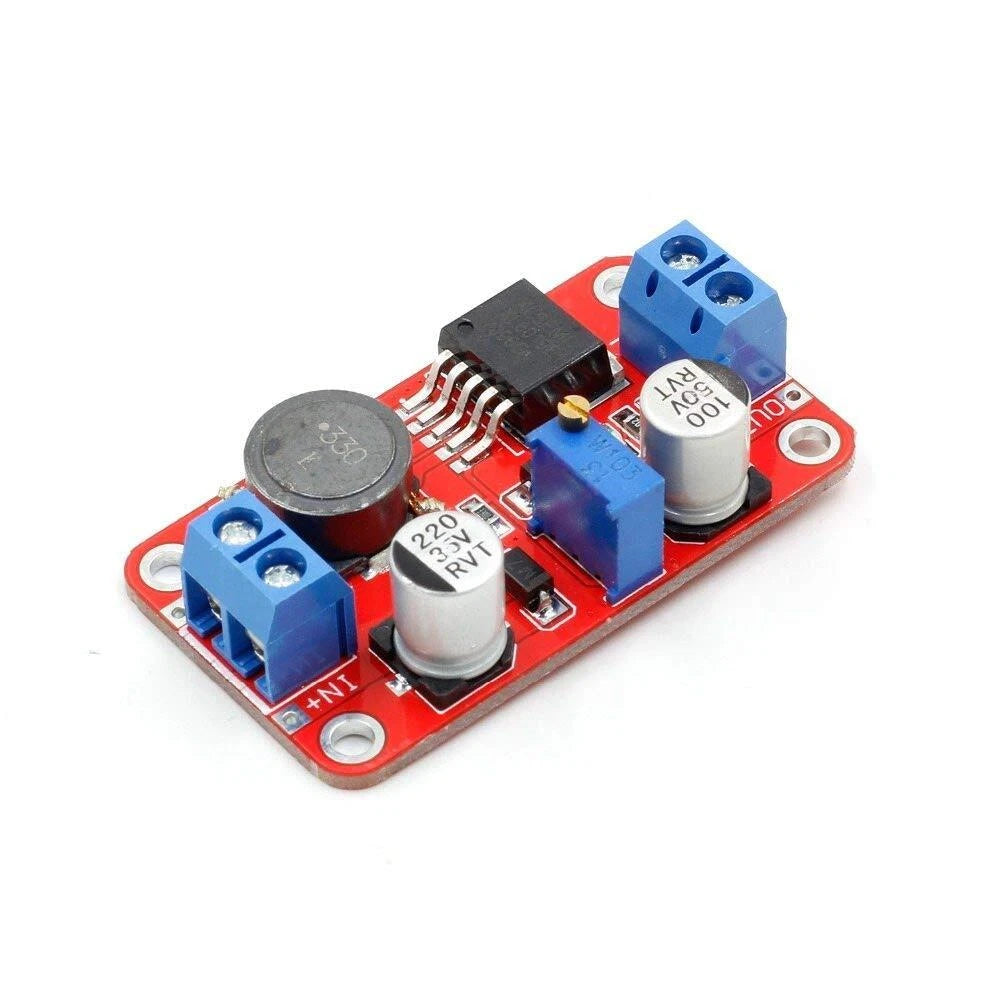

1 Piece: one converter module.
-
3 Pieces: three converter modules.
-

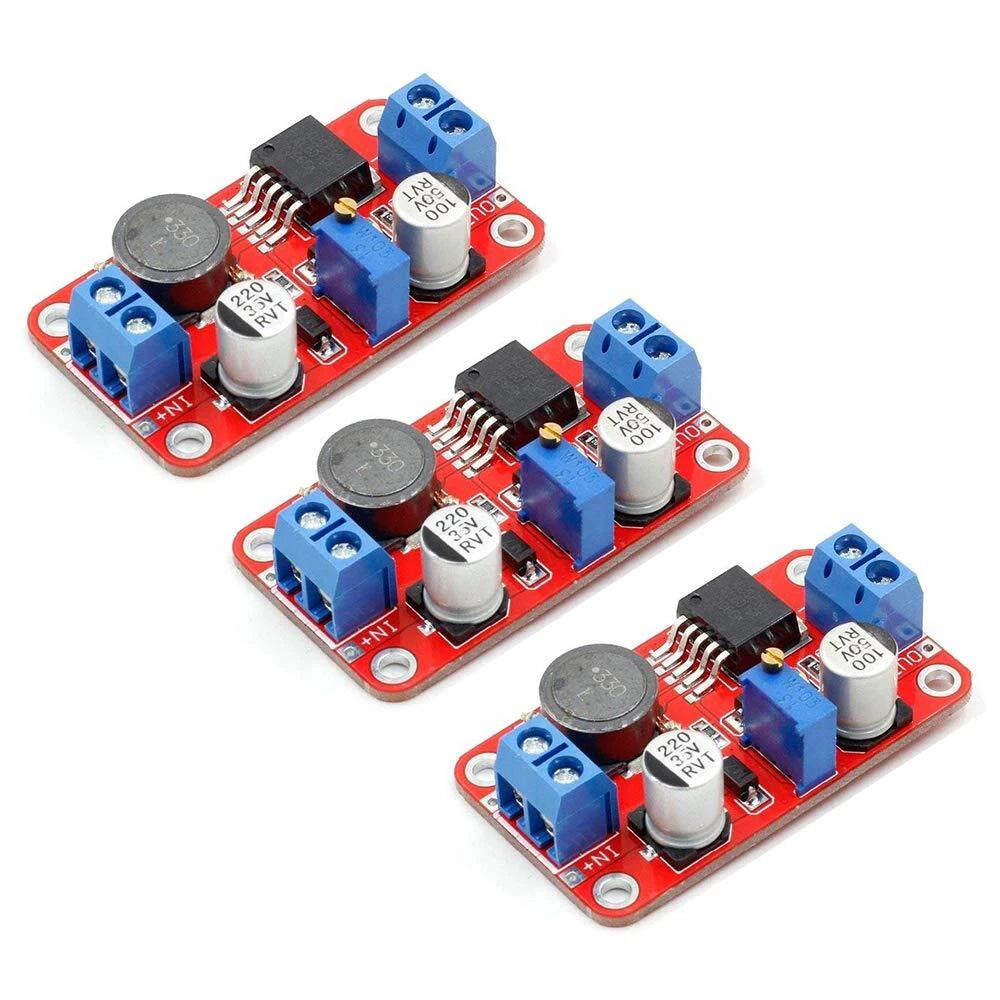

5 Pieces: five converter modules.

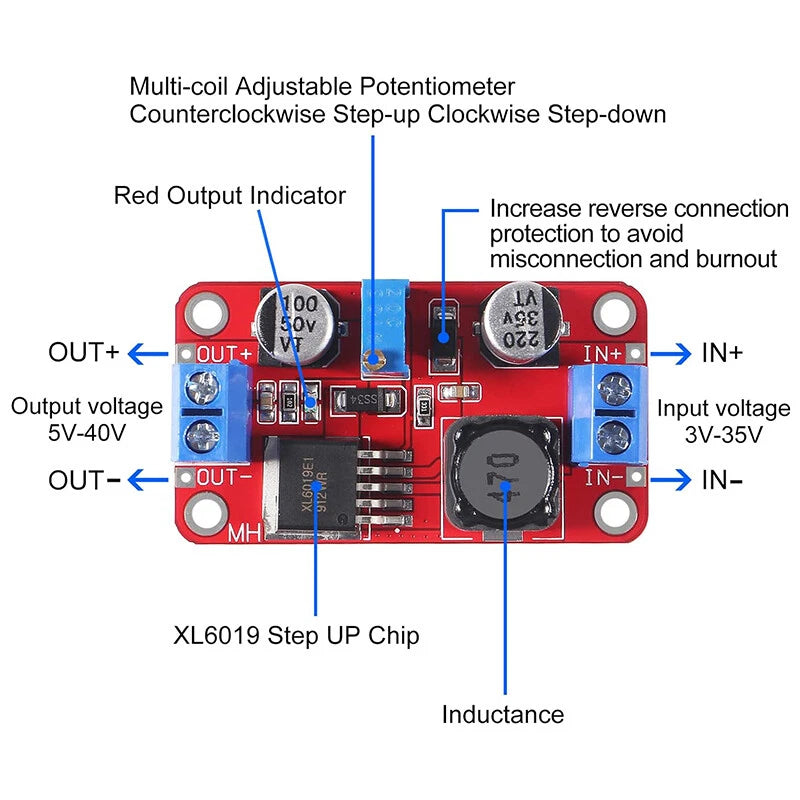

Before connecting a load
- Check the input/output terminal labels and polarity.
- Apply a suitable DC supply and measure the output with a multimeter.
- Adjust the trimmer to the voltage required by your device before attaching it.
- Test under load and check temperature; provide suitable cooling where needed.
Current rating: the 5A figure refers to maximum input current, not a guaranteed 5A output. Available output current falls as the boost ratio increases and depends on input power, conversion efficiency and cooling. Avoid exceeding the module or connected device limits.
The input and output are not electrically isolated. This board is not a complete lithium battery charger or a mains power supply.
Delivery
Dispatched using economy registered delivery where available. Available destinations, delivery charges and estimates are shown at checkout.
