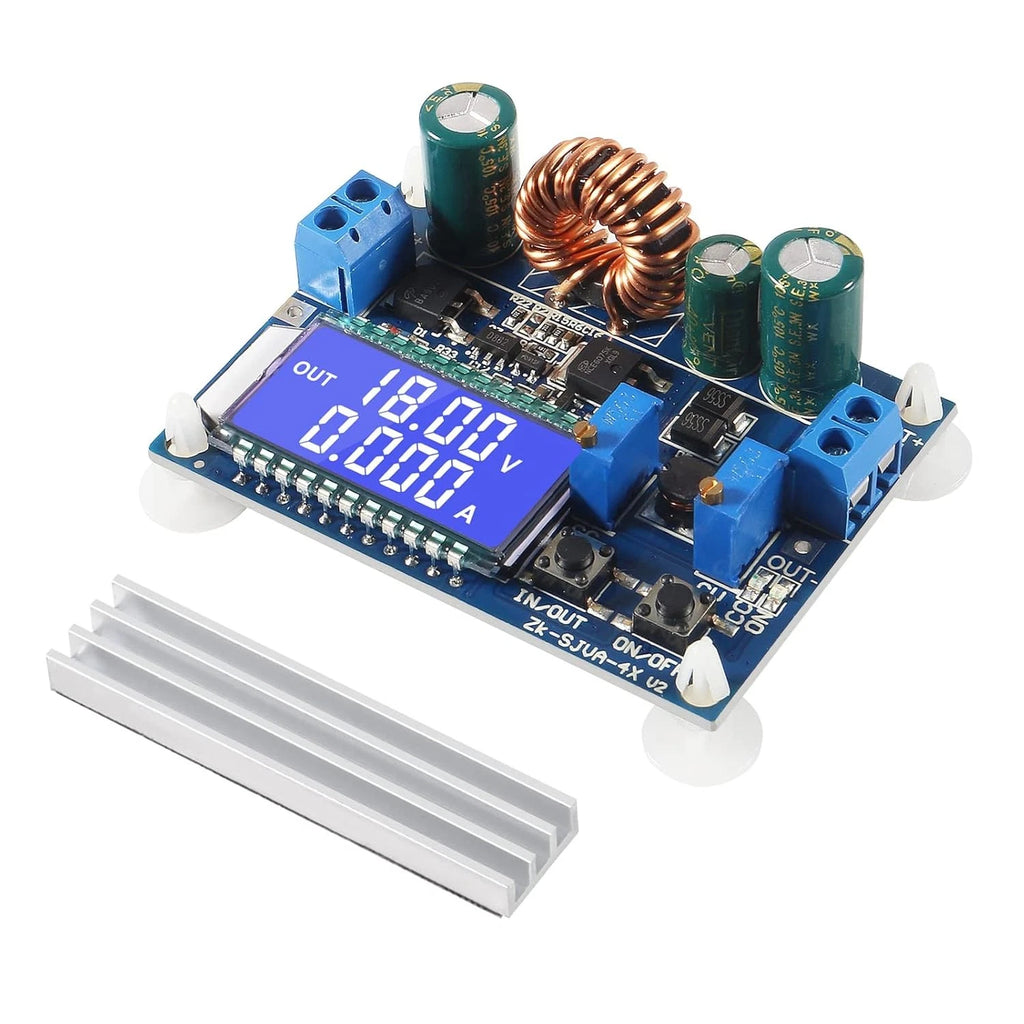

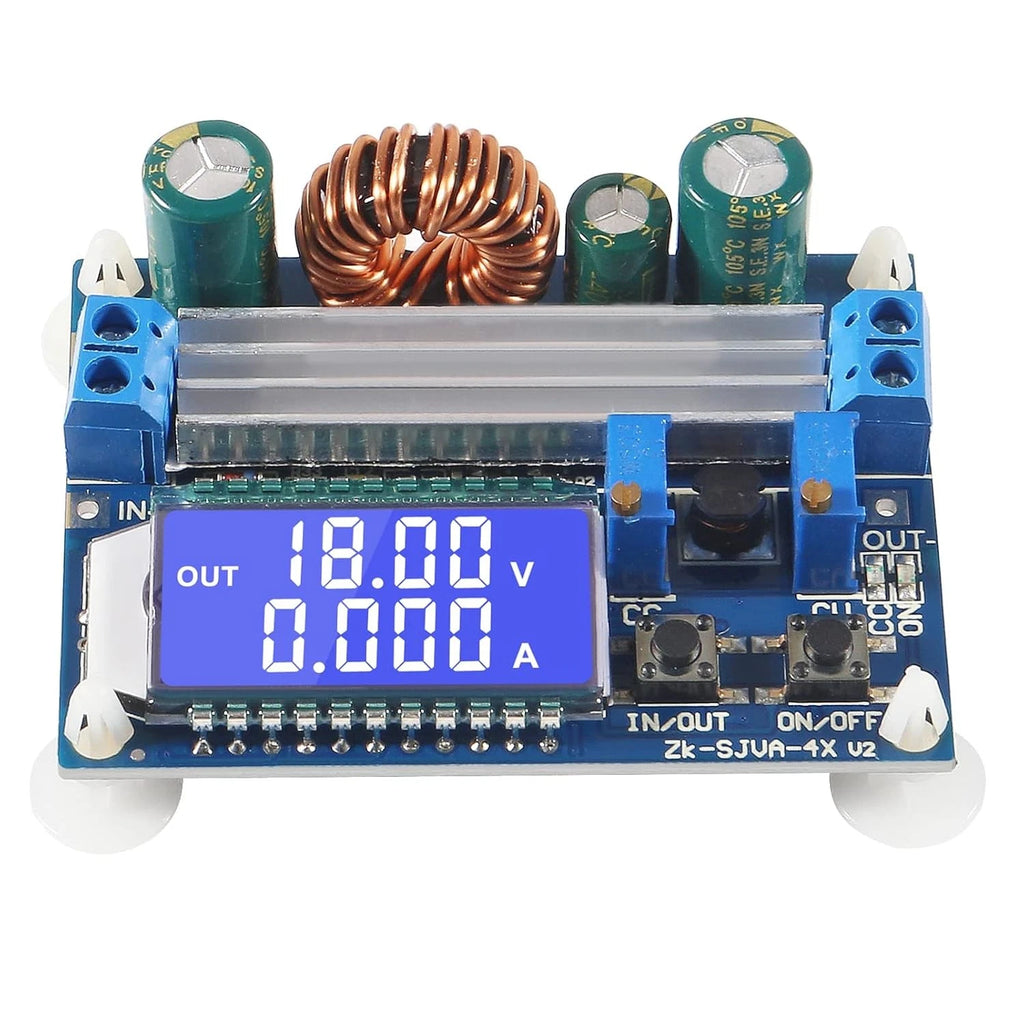

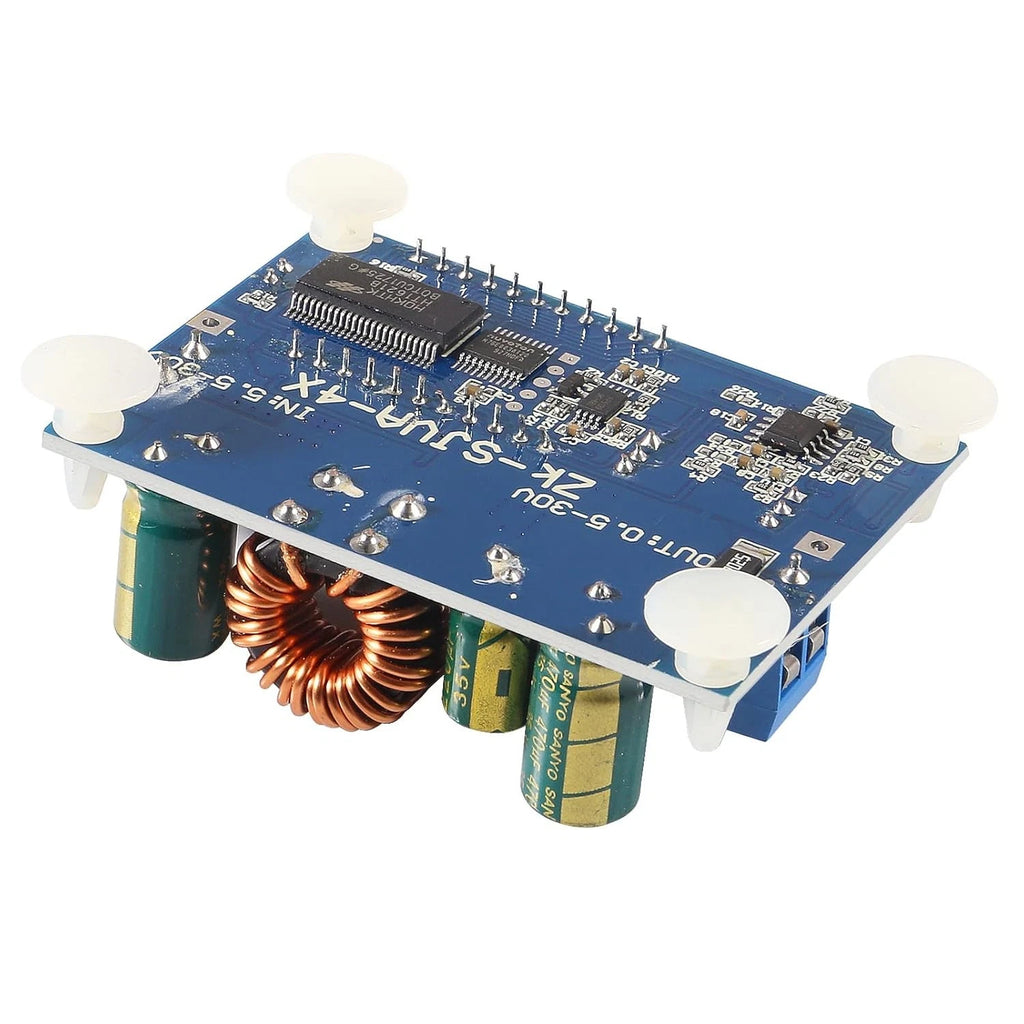

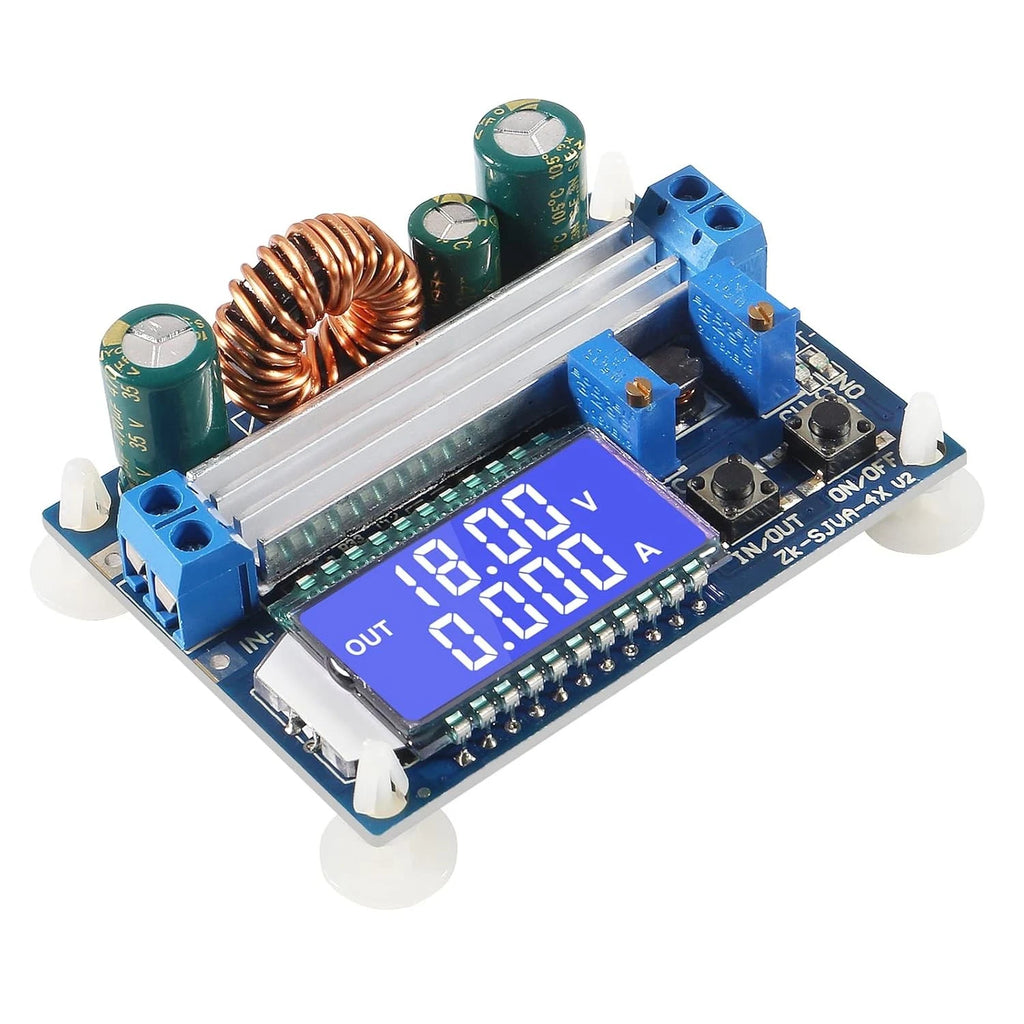

35W Adjustable Buck-Boost DC-DC Converter Module with LCD 0.5–30V
£8.78
✓ Free UK delivery option
✓ 30-day returns
✓ Secure PayPal checkout in GBP
Adjustable constant-voltage and constant-current DC-DC buck-boost converter with an LCD for monitoring input/output voltage, output current and power.

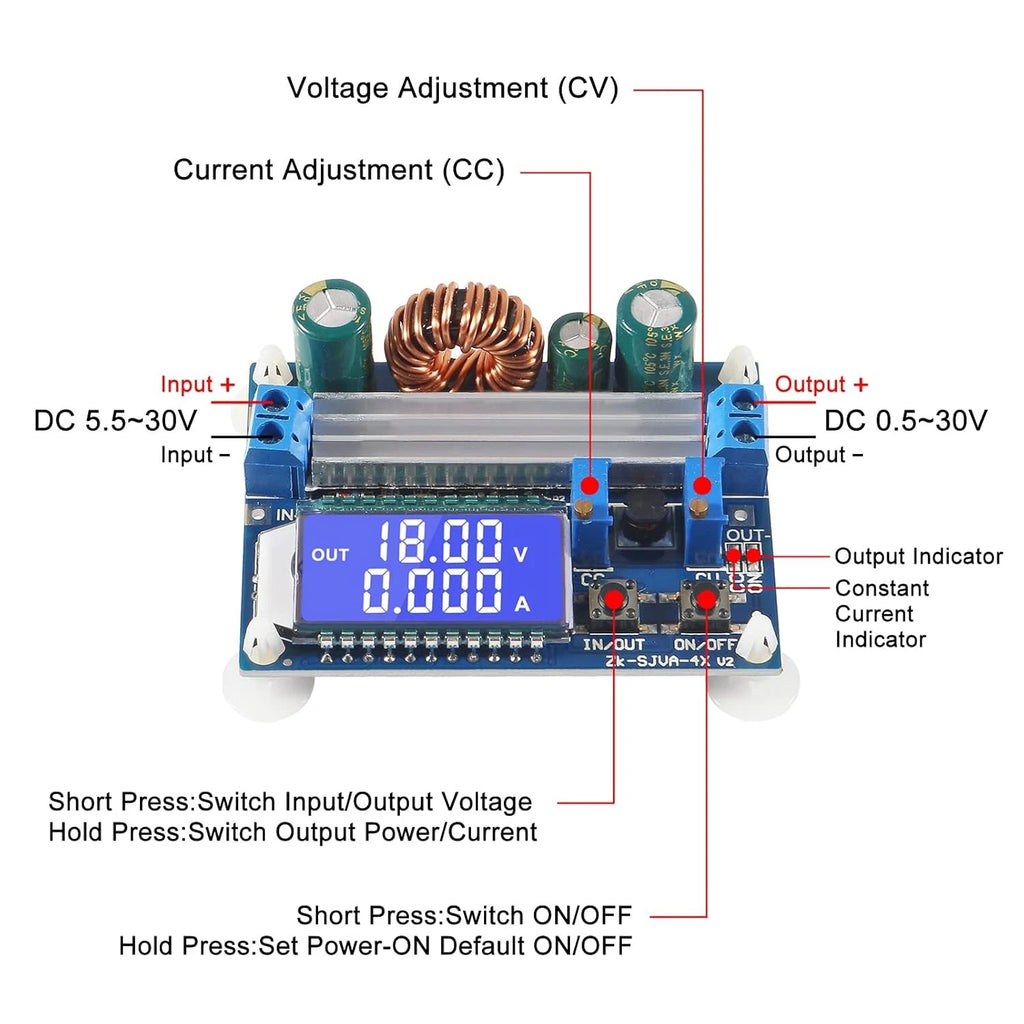

Features
- Step-up and step-down voltage conversion
- LCD displays input/output voltage, output current and output power
- Adjustable output voltage and current limit
- Input reverse-polarity, output backflow and short-circuit protection
- ON/OFF output control and configurable power-on state
- Heat sink and mounting spacers included
Specifications
- Input voltage: 5.5–30V DC
- Output voltage: 0.5–30V DC adjustable
- Output current: 3A continuous; up to 4A with enhanced cooling
- Output power: 35W with natural cooling; up to 50W with enhanced cooling
- Efficiency: approximately 88%
- Working frequency: 180kHz
- Display resolution: 0.05V / 0.005A
- Module size: approximately 66 × 48 × 21mm
- Weight: approximately 46g
Note: Loads above 3A or 35W require additional cooling. Confirm input supply capacity and adjust voltage/current limits before connecting sensitive loads or batteries.
