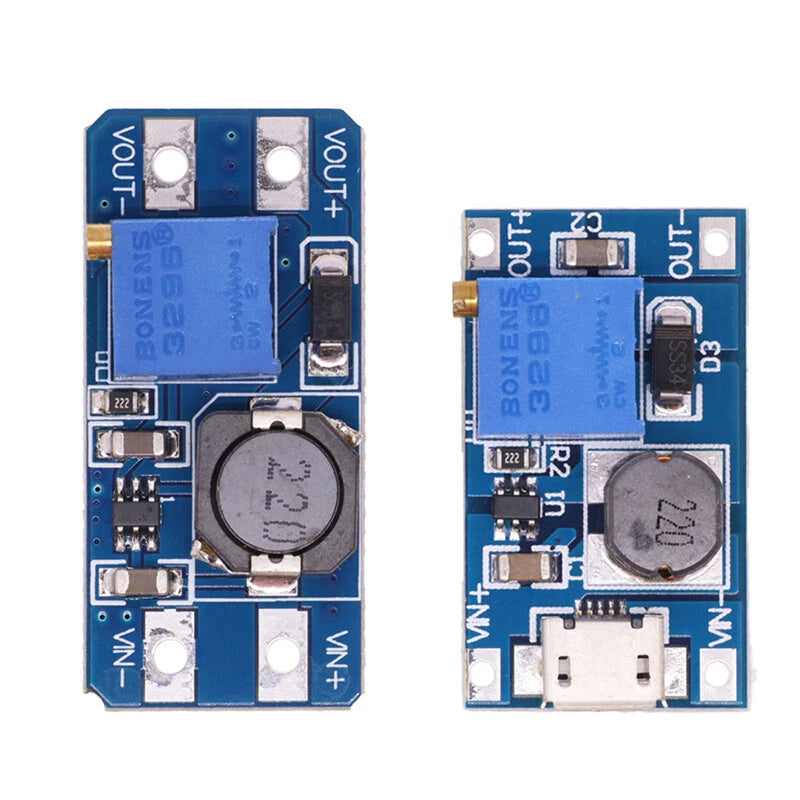

Compact MT3608 adjustable step-up (boost) converter modules for electronics projects, prototyping, battery-powered equipment and voltage conversion. Choose modules with solder-pad input or with a Micro-USB input connector, in packs of 5 or 10.

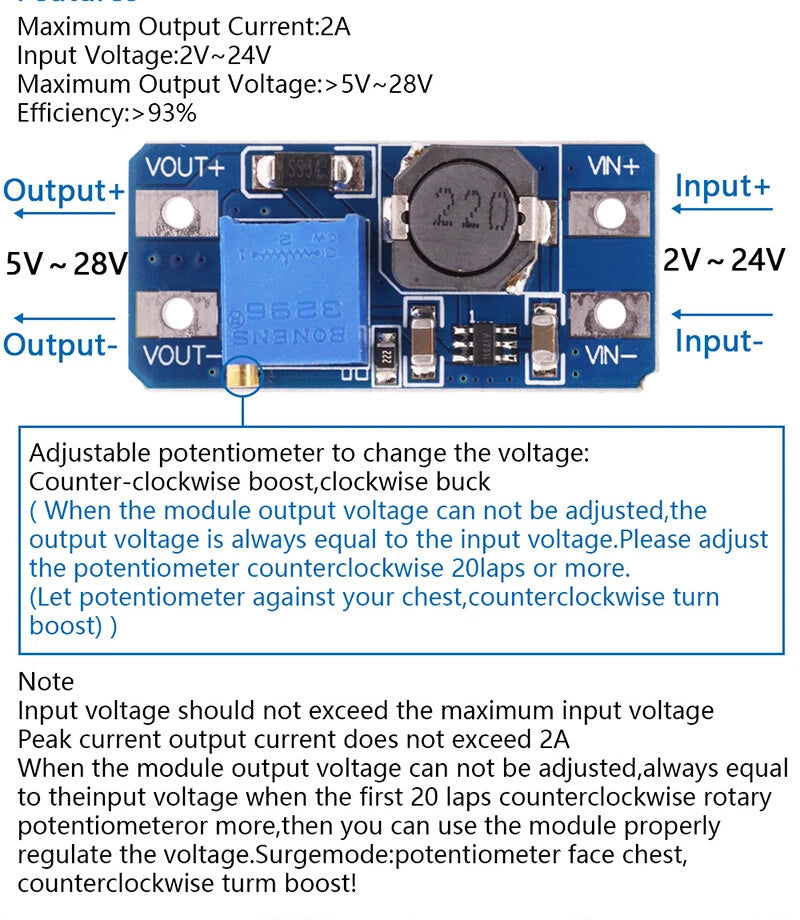

Key features
- Adjustable DC-DC step-up output
- Input voltage: 2–24V DC
- Maximum output voltage: over 28V; recommended operating output up to 26V
- Maximum output current: 2A peak; 1A or less recommended for continuous use
- Conversion efficiency: up to 93%
- Module size: approximately 30 × 17 × 14mm

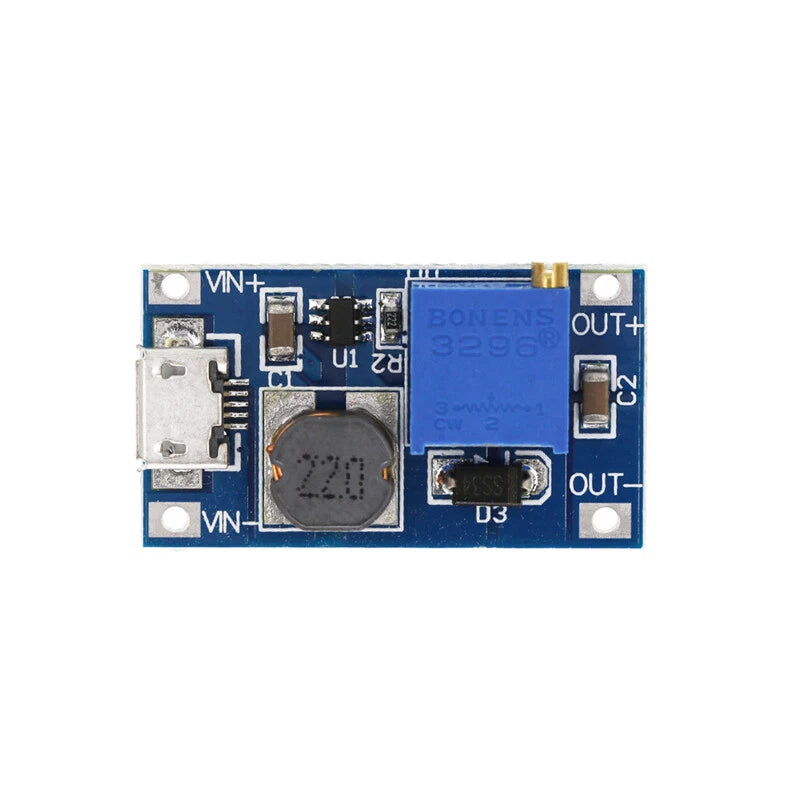

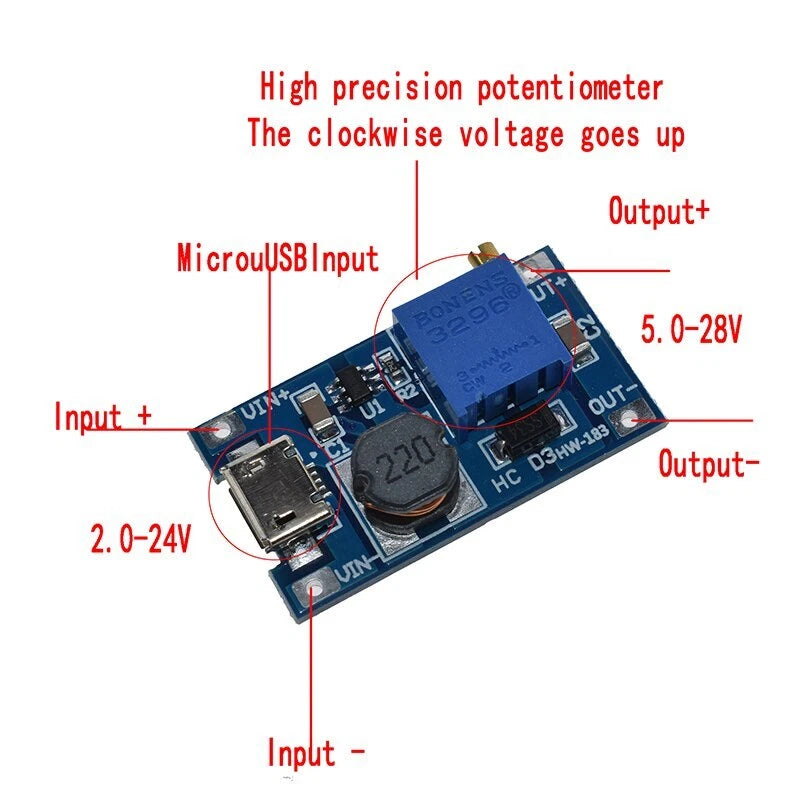

- Micro-USB input available on selected variants
Important operating information

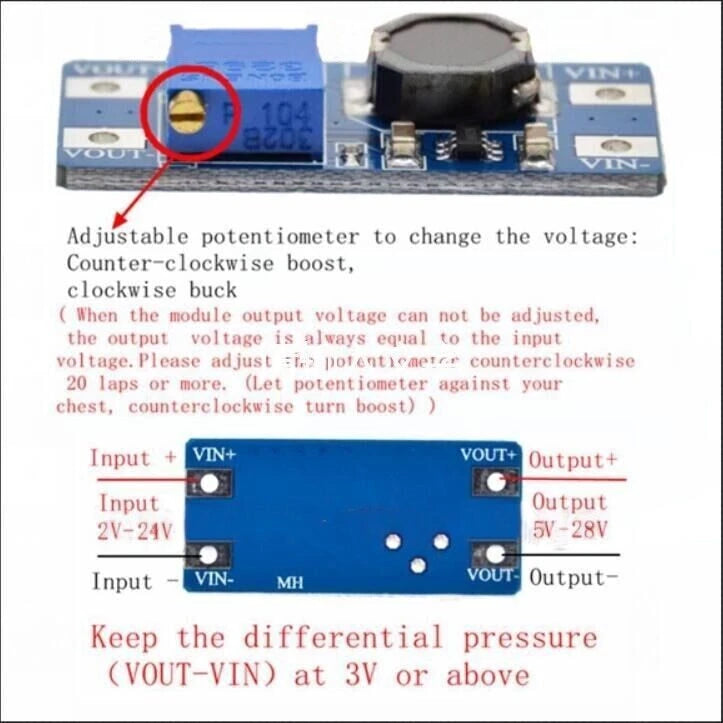

This is a boost converter: the adjusted output voltage must be higher than the input voltage. Check polarity before connecting power and set the required output voltage with a multimeter before connecting your load. Adequate ventilation and heat management are recommended at higher loads.
Pack options

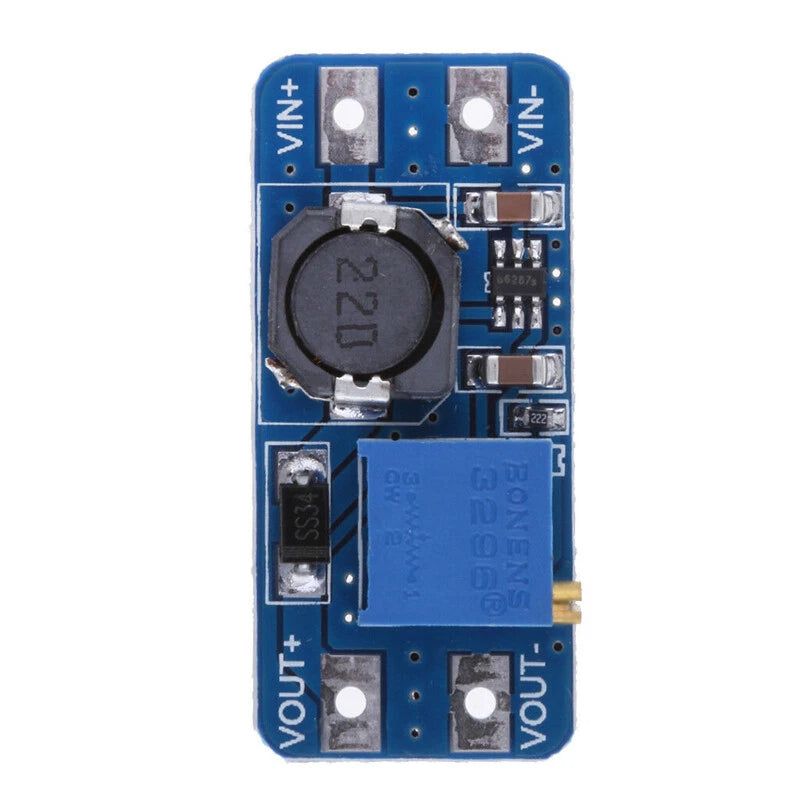

- No Micro connector: 5-pack or 10-pack
- With Micro connector: 5-pack or 10-pack
