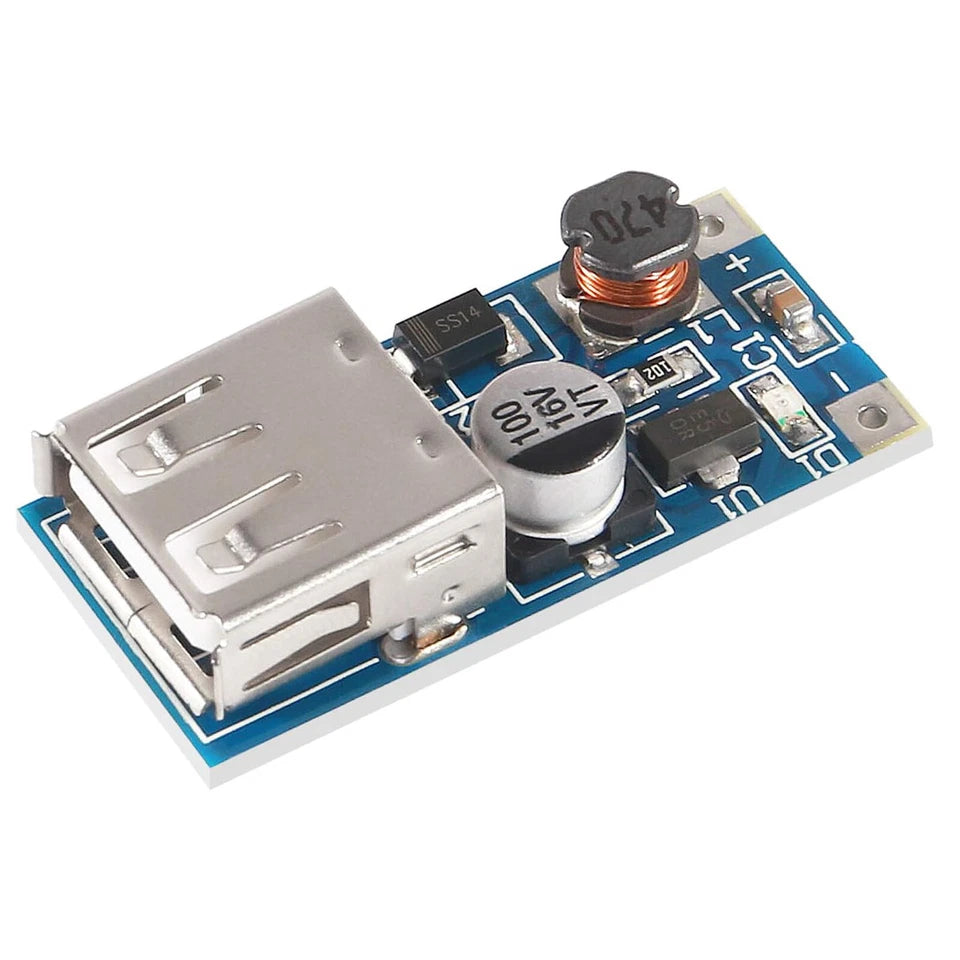

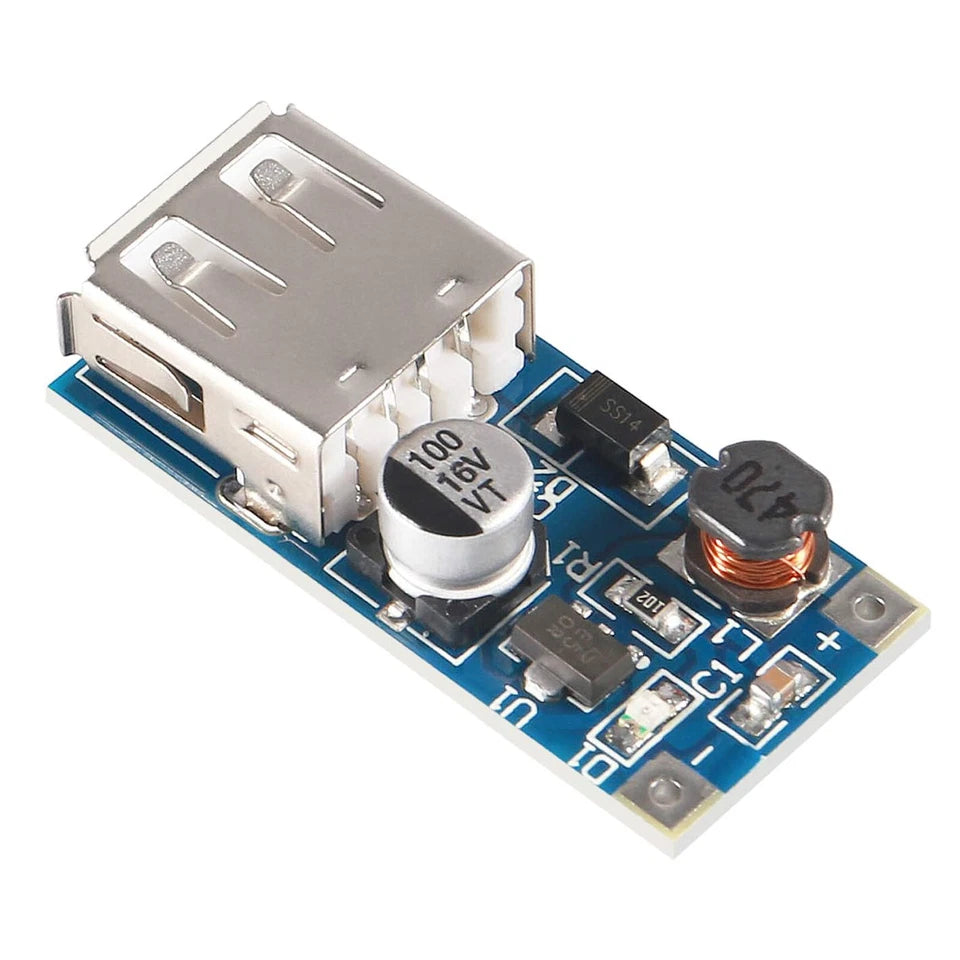

DC-DC Step-Up Boost Converter Module
A compact non-isolated boost converter for raising a low DC input to a regulated 5V USB output. Suitable for DIY power banks, battery-powered electronics, prototypes and portable 5V projects.
-
Input voltage: 0.9V–5V DC
-
Output: approximately 5.1V–5.2V via USB
-
Rated current: up to 600mA as specified by the source listing; actual output depends on input voltage, supply capability, load and cooling
-
Efficiency: up to 96% under suitable conditions
-
Switching frequency: 500kHz
-
Operating temperature: -40°C to +85°C
-
Connection: solder input pads, USB output
Important: this module has no short-circuit protection and no reverse-polarity protection. Check IN+ and IN− carefully before powering it, and use a protected battery or suitable external protection.

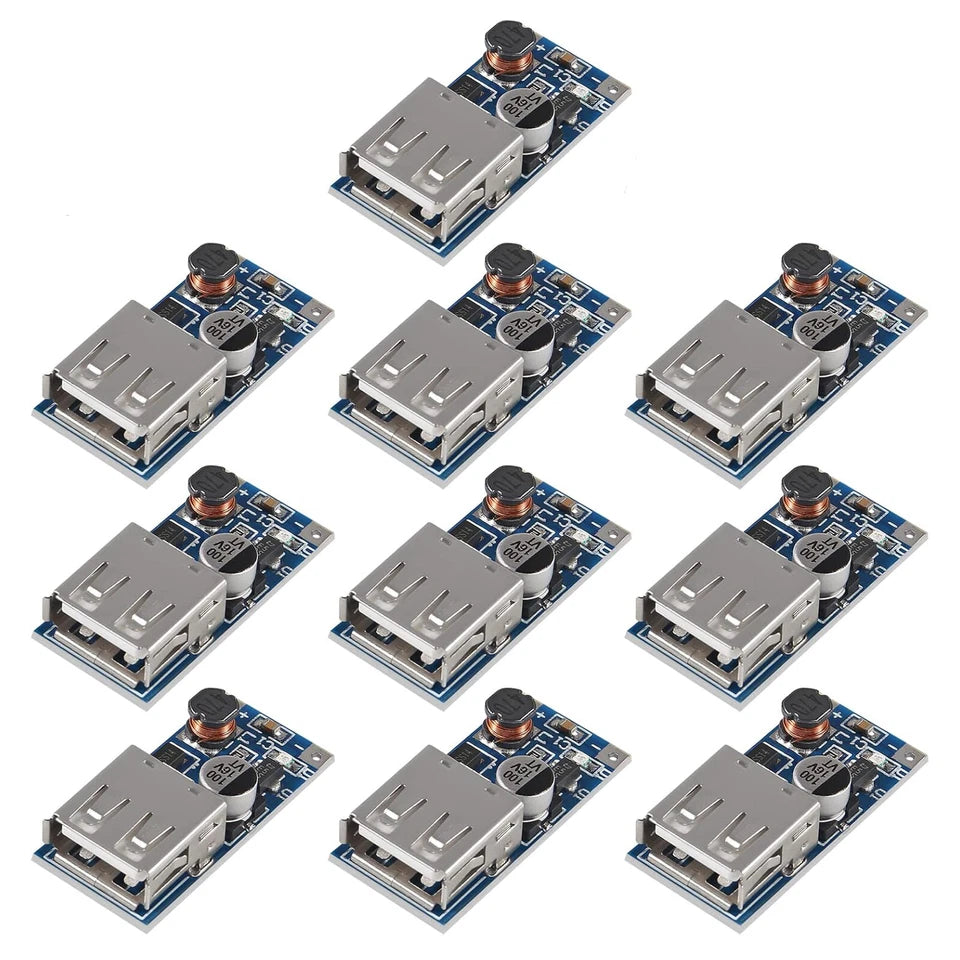

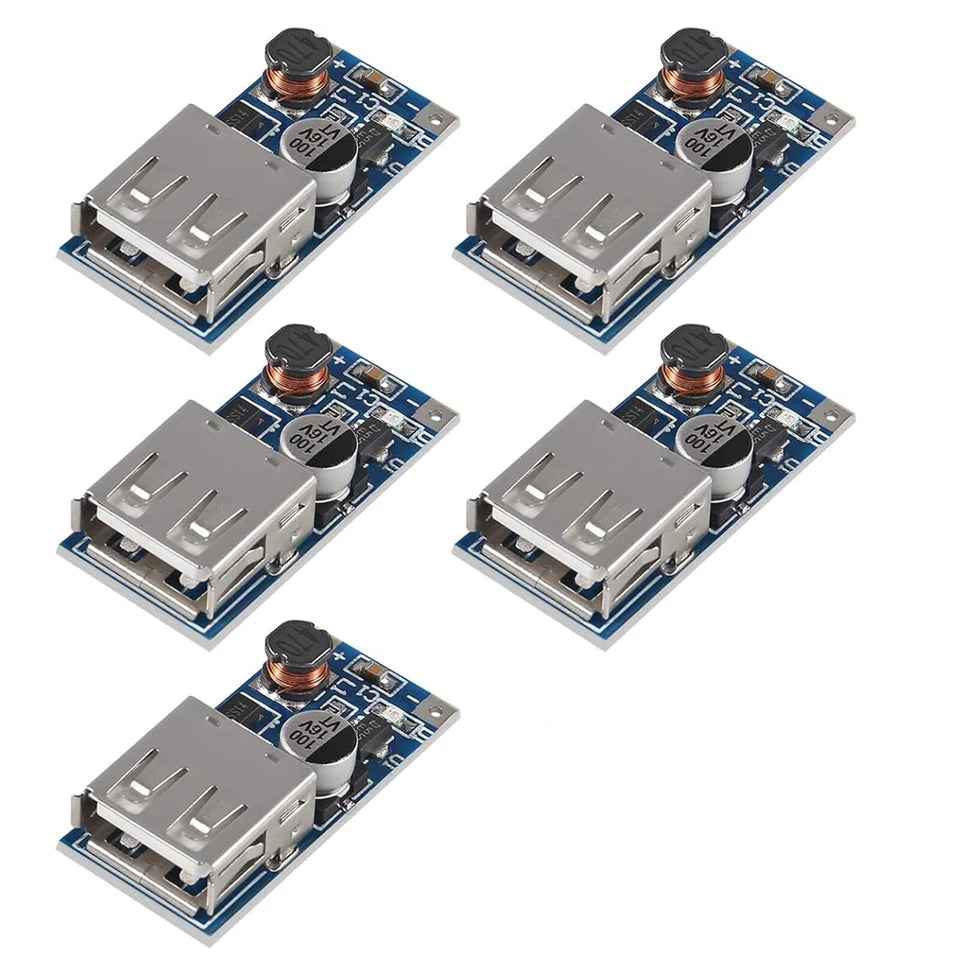

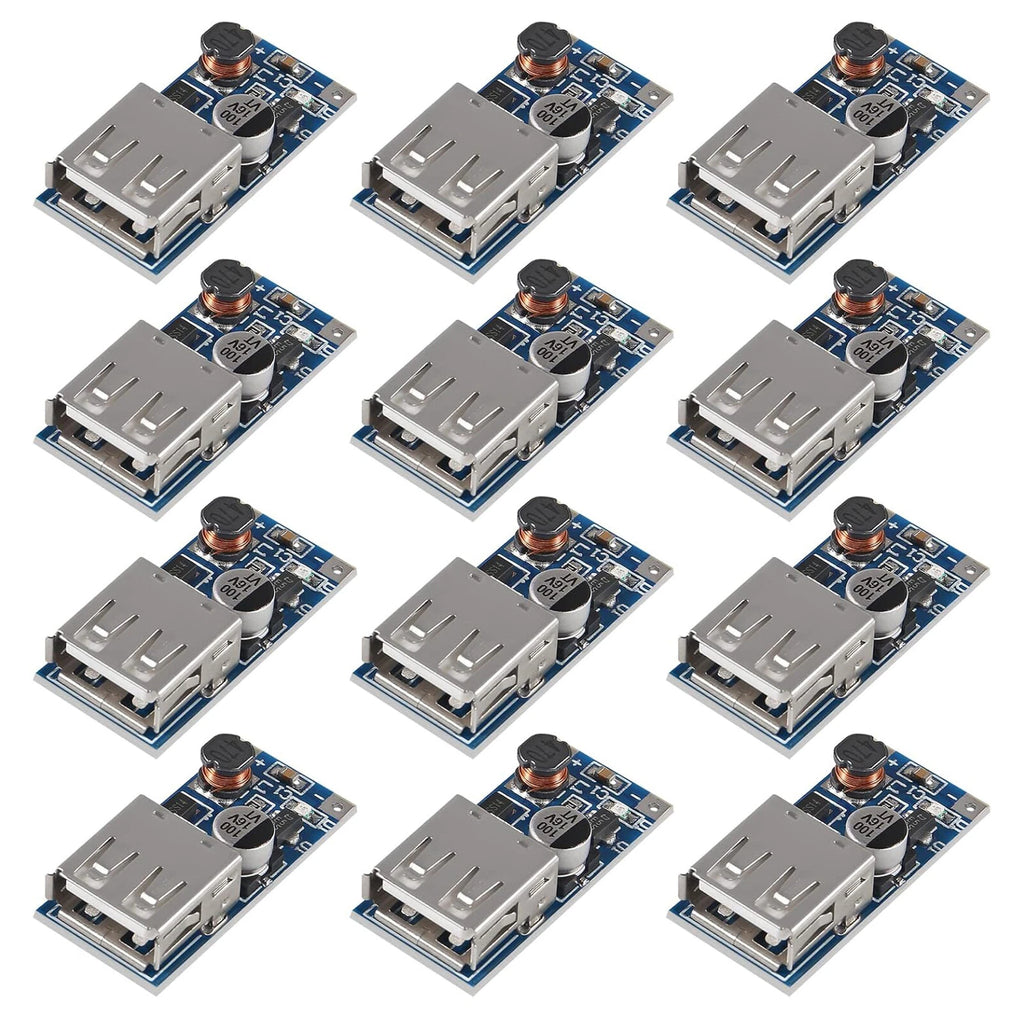

Pack selection: choose 1, 5 or 10 modules from the product options before checkout.
